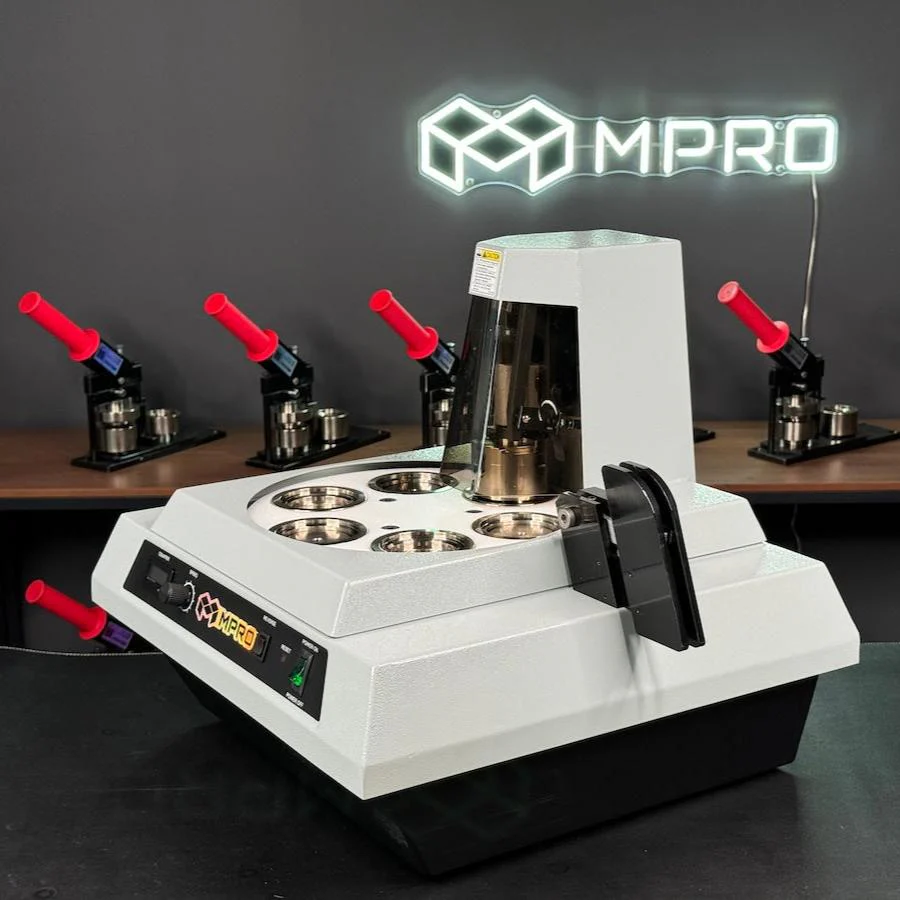

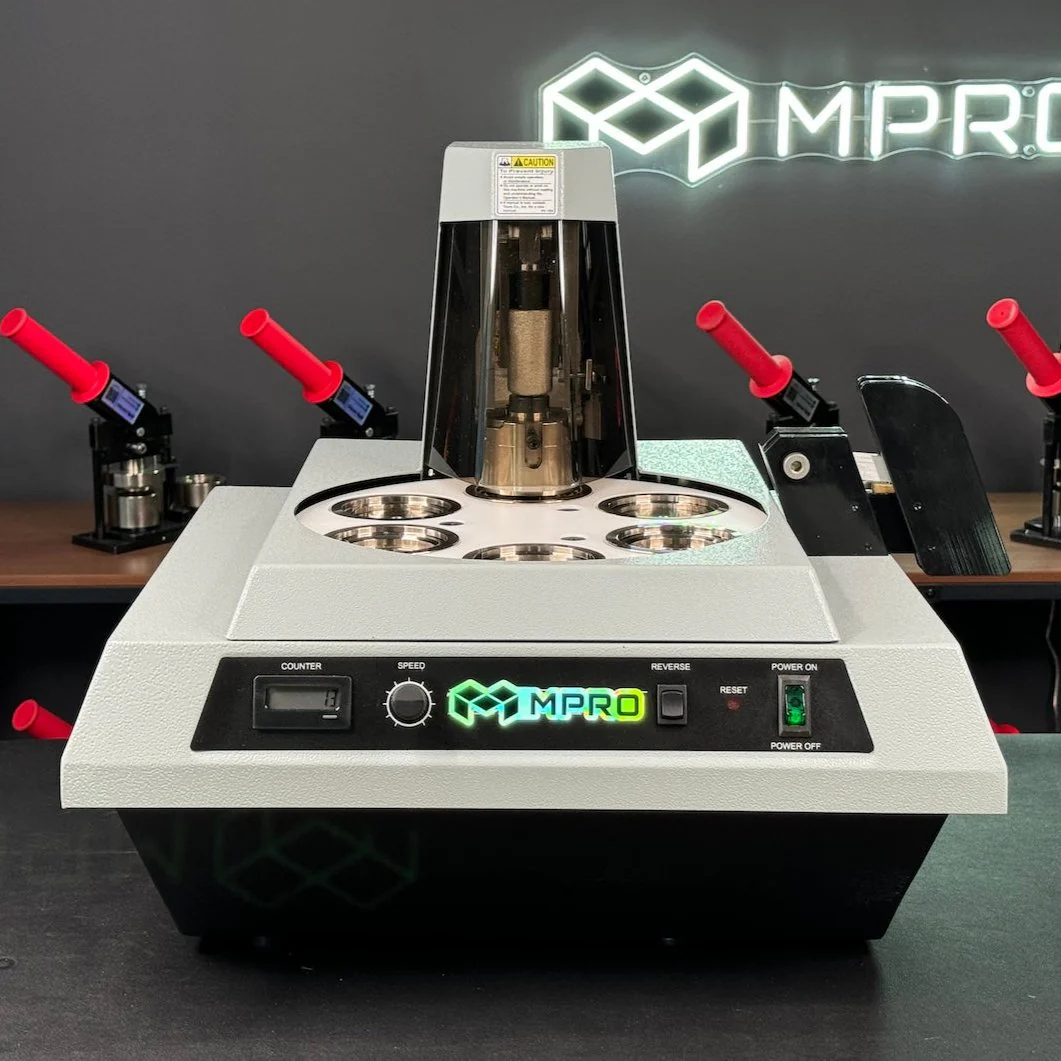

MPRO Model 2 Electric Button Making Machine

Important: Diesets must be purchased separately and are not included with the machine.

Diesets available in the following sizes

• Round Sizes: 0.875", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.375", 2.5" and 3"
• Octagon Size: 2"
• Square Sizes: 1", 1.5" and 2"
• Rectangle Sizes: 1.75 x 2.75", 1.75 x 2.75" and 2 x 3" Rounded Corner Rectangle
• Oval Sizes: 1 x 1.75", 1.75 x 2.75"

Specs

• All metal cabinetry - durable and attractive metal case protects internal mechanisms while offering easy access for service

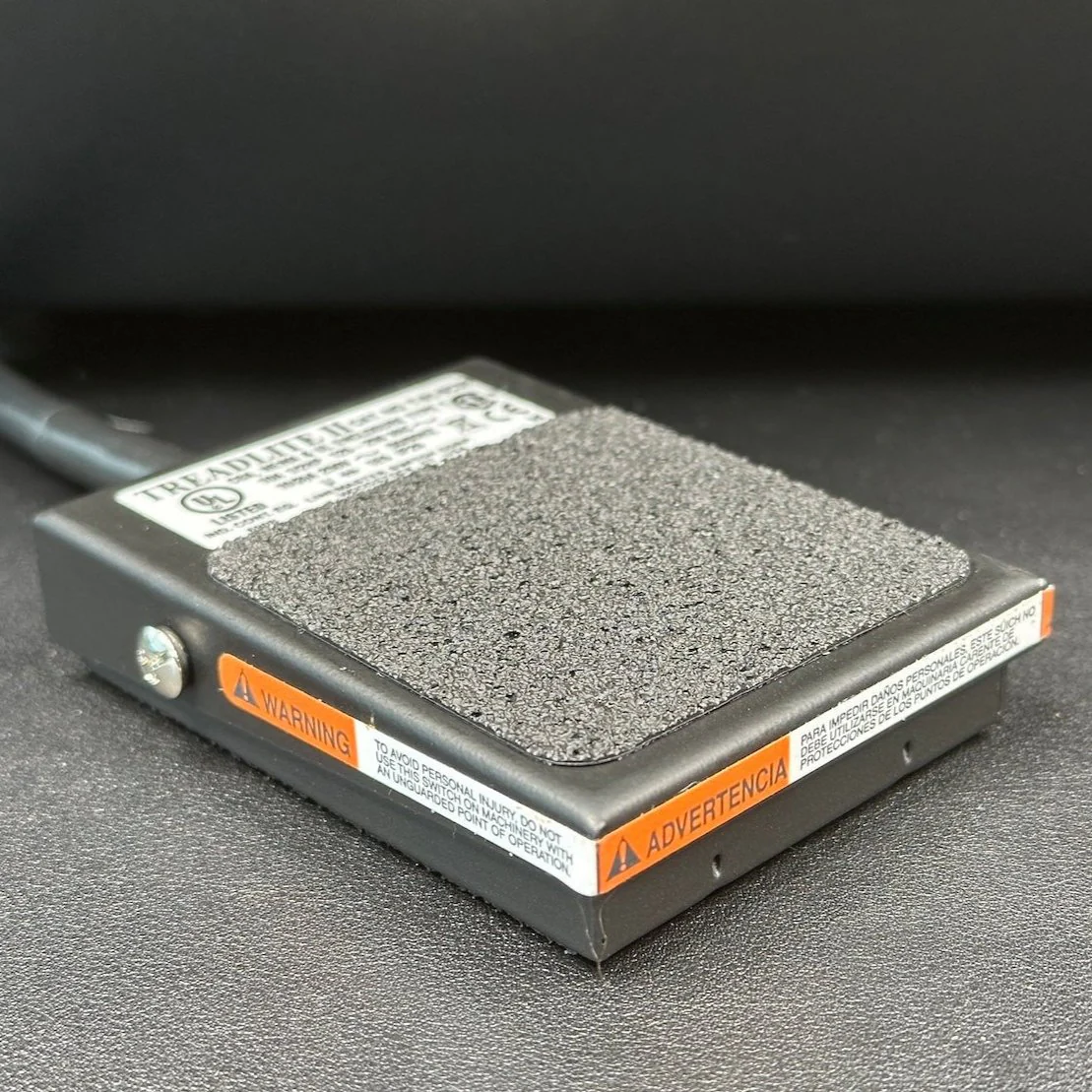

• Foot switch control - leaves both hands free to load component parts and offers on/off control to the operator
• Safety switch protected covers - machine automatically switches off when cover(s) are opened/removed

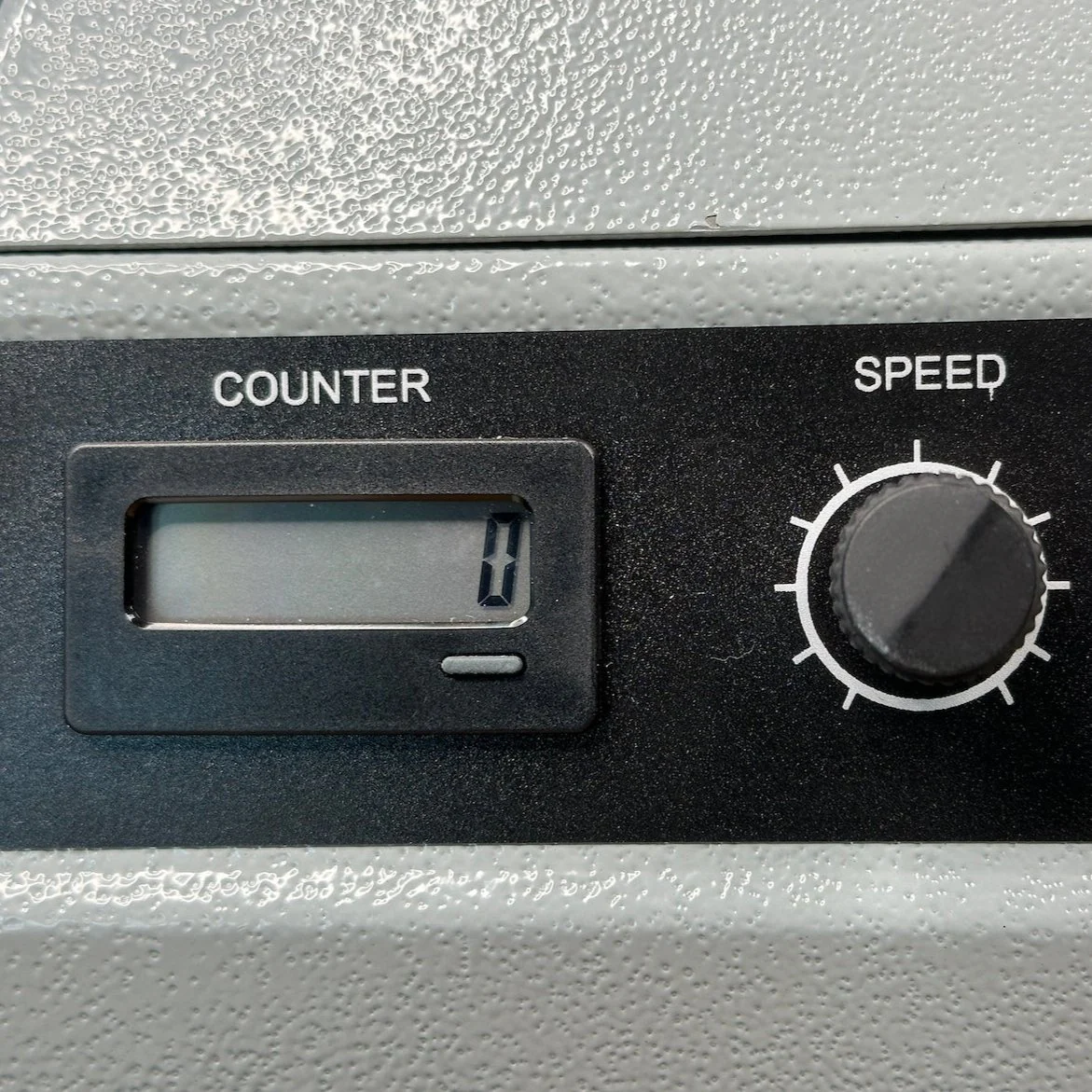

• Parts counter- can be reset to zero at the beginning of a production run to register the number of buttons produced
• Speed control - infinitely variable speed control (0-1140 buttons/hour) can be adjusted to match operator's skill level

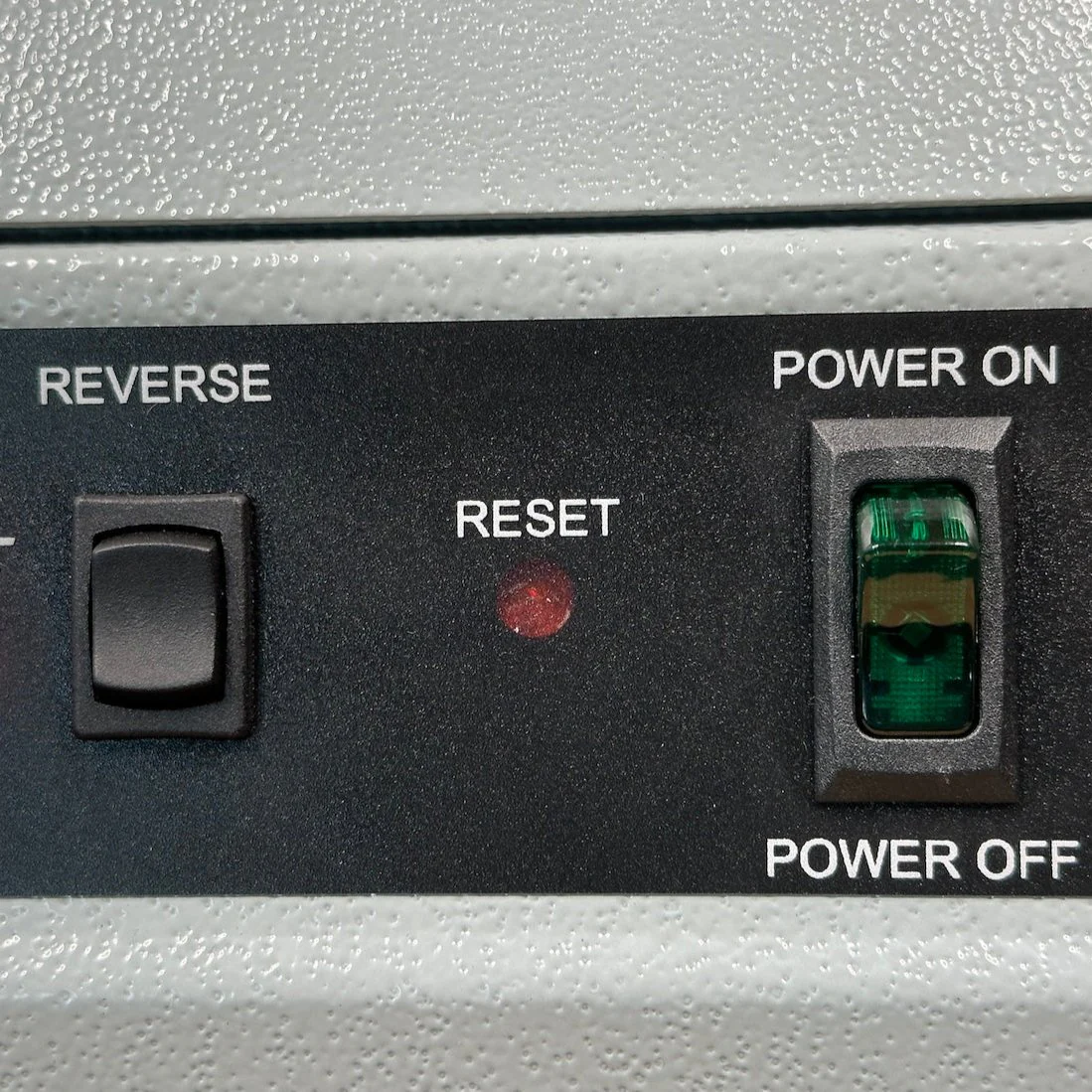

• Reverse switch - allows machine to be run backwards to the top of the cycle to open dies in the case of a jam

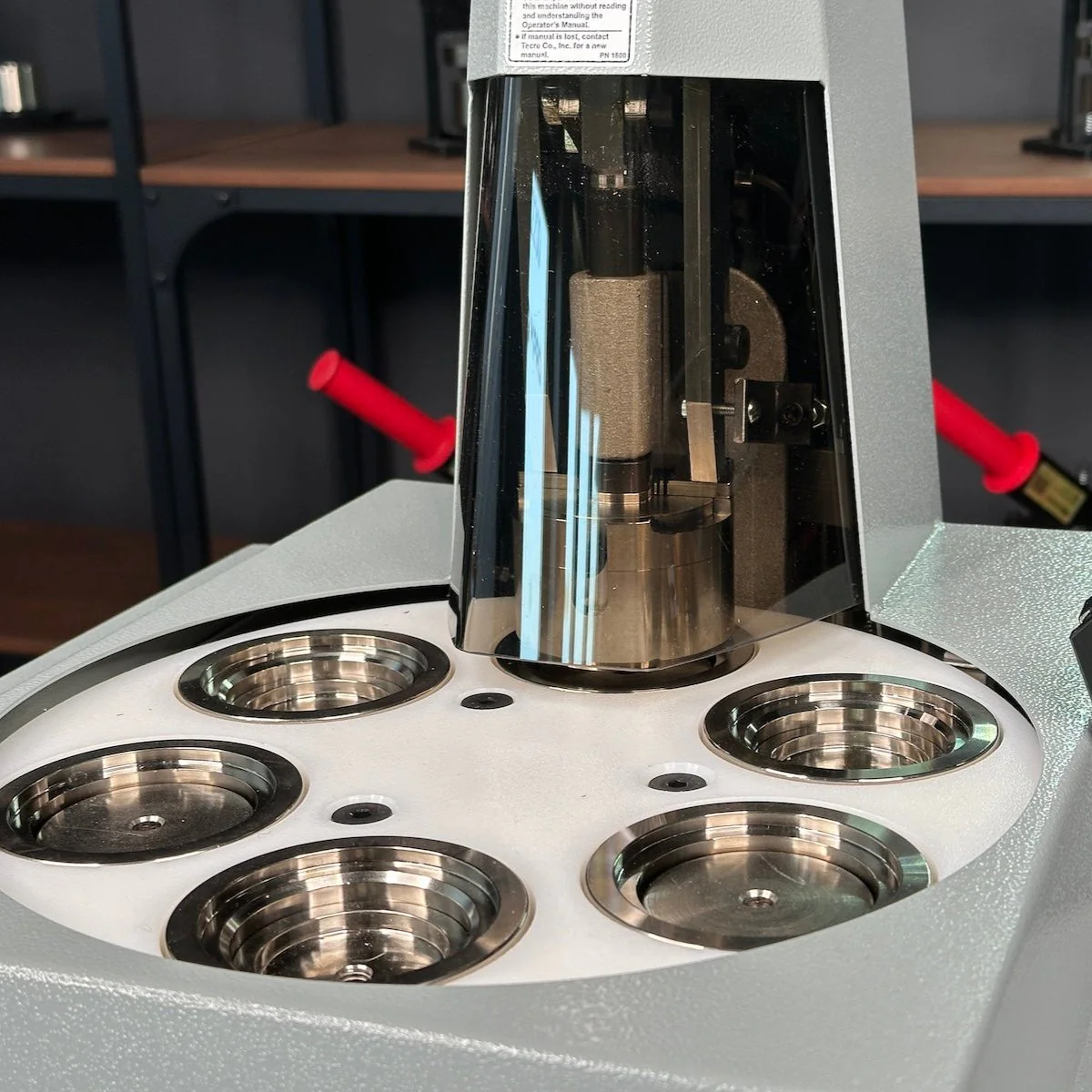

• Interchangeable turntable diesets - no adjustments necessary between sizes
• Overload protection systems - prevents damage to machine in event of double loading or jam situation

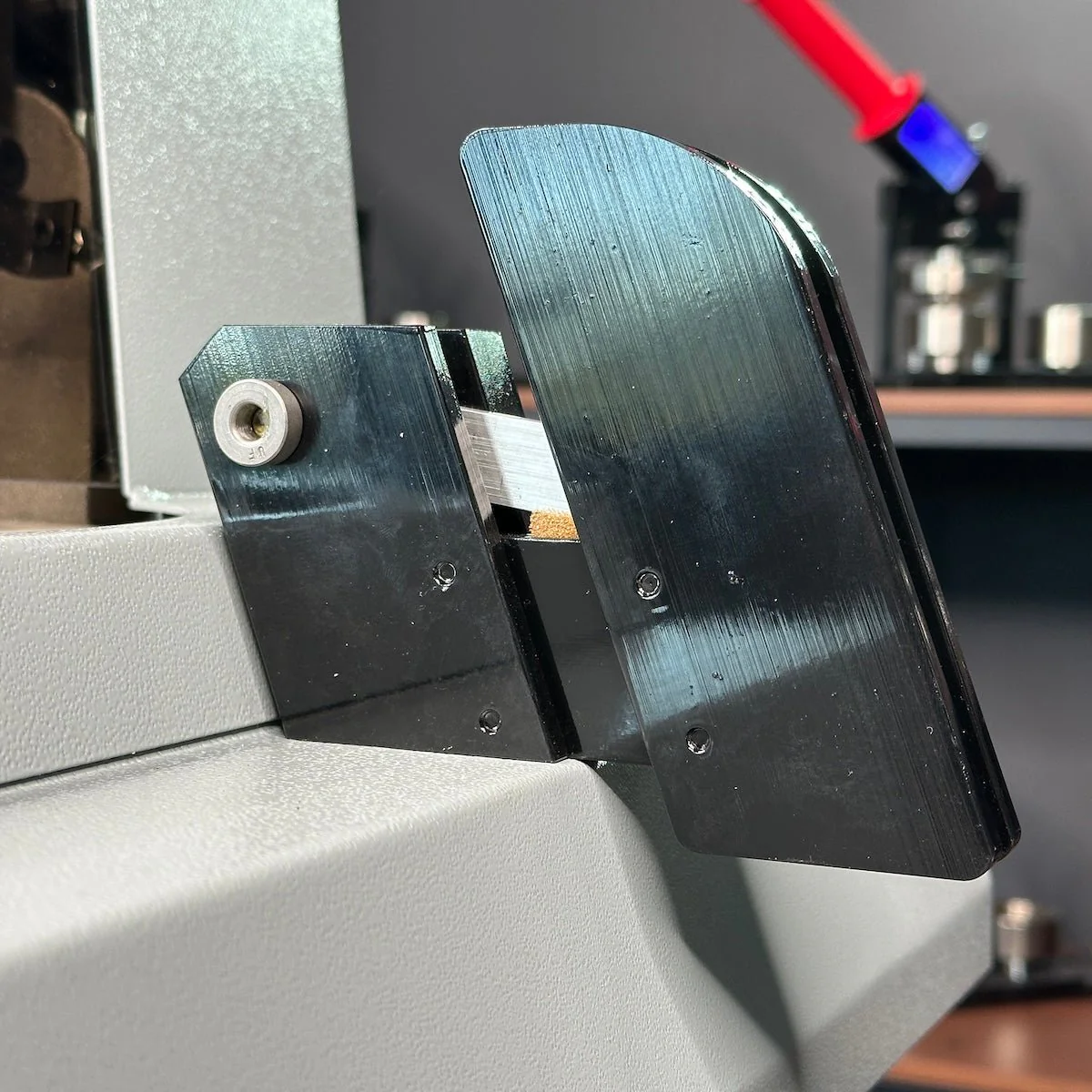

• Magnetic Unloader Arm - removes finished buttons from the machine, saving time for the operator
• Operating voltage - 115 volt ac (standard ) and 220 volt for European use (Transformer required)
• Detent clutch drive mechanism - safety feature to disengage rotation of the turntable dieset
• CE Compliant - Available with or without Europoean CE Compliance
• For Graphic Cutting Needs Use: Die Cutting Press and Cuttind Board (159)

Dimensions and Weight

• Weight: 65 lbs.
• Length: 18” Width: 17. 5” Height: 17”
• Made in USA
